Page 7 - GİYOTİNYUM SİSTEMLERİ
P. 7
140
16,7
157,56
180

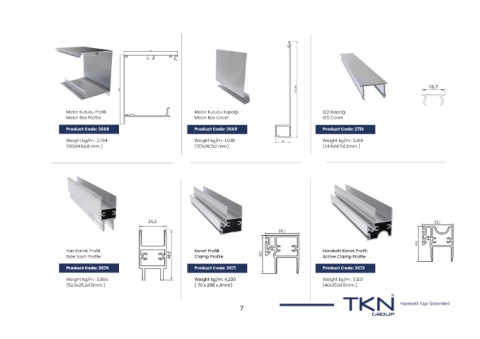

Motor Kutusu Profili Motor Kutusu Kapağı LED Kapağı
Motor Box Profile Motor Box Cover LED Cover
Product Code: 3668 Product Code: 3669 Product Code: 2716
Weight kg/m : 2,764 Weight kg/m : 1.038 25 Weight kg/m : 0,166
(180x140x1,8 mm ) (157x28,7x2 mm) (24.6x14.7x1.2mm )
25,2 35,1
35,1
40
Yan Kanat Profili Kenet Profili Hareketli Kenet Profili
Side Sash Profile Clamp Profile 40 Active Clamp Profile
Product Code: 3670 Product Code: 3671 Product Code: 3672
Weight kg/m : 0,865 Weight kg/m: 4,200 Weight kg/m : 0.821
(52.9x25.2x1.5mm ) ( 70 x 298 x 2mm) (40x35.1x1.5mm )
Hareketli Yapı Sistemleri
7
