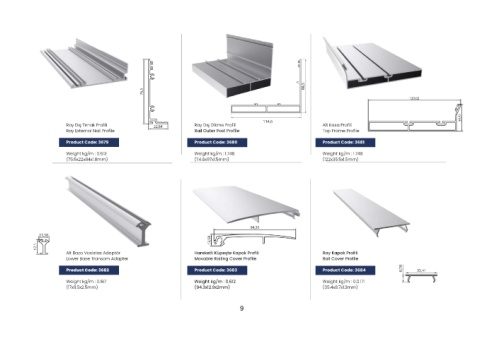

Page 9 - GİYOTİNYUM SİSTEMLERİ
P. 9
88,5
76,5
120,02
35,51
114,6
Ray Dış Tırnak Profili 22,84 Ray Dış Dikme Profili Alt Kasa Profili
Ray External Nail Profile Rail Outer Post Profile Top Frame Profile
Product Code: 3679 Product Code: 3680 Product Code: 3681
Weight kg/m : 0.613 Weight kg/m : 1.748 Weight kg/m : 1.748
(75.5x22x84x1.8mm) (114.6x97x1.5mm) (122x35.5x1.5mm)
94,31
11,58
13,58
17,1
Alt Baza Vasistas Adaptör Hareketli Küpeşte Kapak Profili Ray Kapak Profili
Lower Base Transom Adapter Movable Railing Cover Profile Rail Cover Profile
Product Code: 3682 Product Code: 3683 Product Code: 3684 8,78 35,41
Weight kg/m : 0.187 Weight kg/m : 0.612 Weight kg/m : 0.0.171
(17x11.5x2.5mm) (94.3x12.9x2mm) (35.4x8.7x1.3mm)
9
